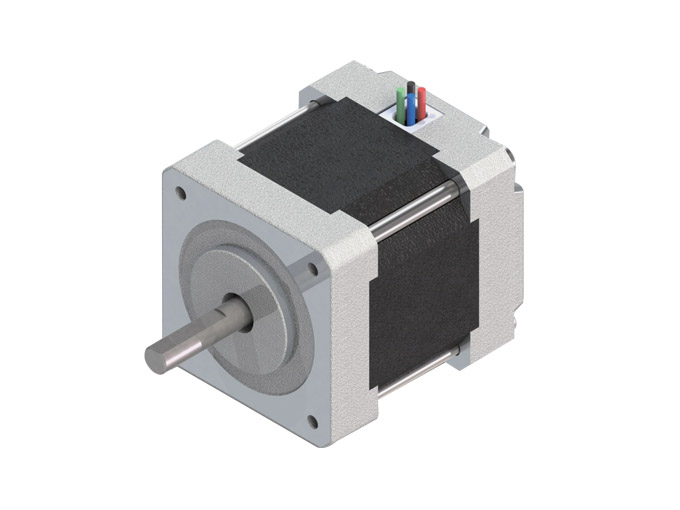

39H2F系列步进电机
步进电机

步距角
Step Angle
1.8°
绝缘电阻
Insulation Resistancce
500V DC 100MΩ Min
绝缘强度
Dielectric Strength
500V AC 50Hz 2mA 1Minute
环境温度
Ambient Temperature
-20~+40℃
温升
Temperature Rise
80K Max
绝缘等级
Insulation Class
B

产品性能参数(Electrical specification):

39H2F 双极性

型号
Model

机身长度
Fuselage Length

额定电压
Rated voltage

额定电流
Rated Current

绕组电参数

静力矩
Static moment

转子惯量
Rotor Inertia

电机质量
Motor quality

@20℃
Typ.
mm
V
Amps
Ohms
mH
N.m
oz-in
g.cm2
oz-in2
Kg
Lbs

39H2F26-054

26

3.65

0.5

7.3

9.6

0.18

26

20

0.11

0.15

0.33

39H2F26-104

3.6

1.0

3.6

4.7

0.18

26

20

0.11

0.15

0.33

39H2F26-124

3.36

1.2

2.8

3.0

0.18

26

20

0.11

0.15

0.33
39H2F26-154
2.25
1.5
1.5
2.0
0.18
26
20
0.11
0.15
0.33

39H2F33-054

33

5.0

0.5

10

21

0.23

34

27

0.15

0.21

0.46

39H2F33-104

4.0

1.0

4.0

7.0

0.23

34

27

0.15

0.21

0.46
39H2F33-124
3.0
1.5
2.0
3.3
0.23
34
27
0.15
0.21
0.46

39H2F33-154

2.2

2.0

1.1

2.4

0.24

34

27

0.15

0.21

0.46

以上产品可根据客户要求定制。
Above Products can be customized according to customer requirement

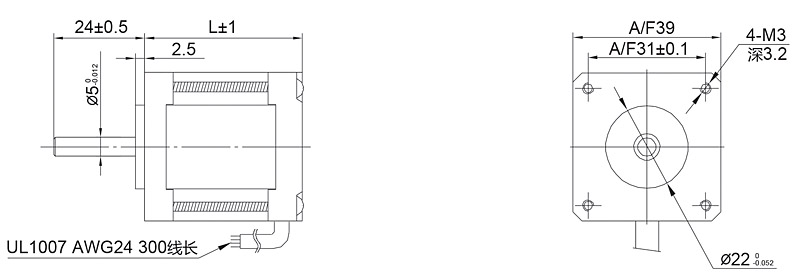

外形尺寸(Dimension):

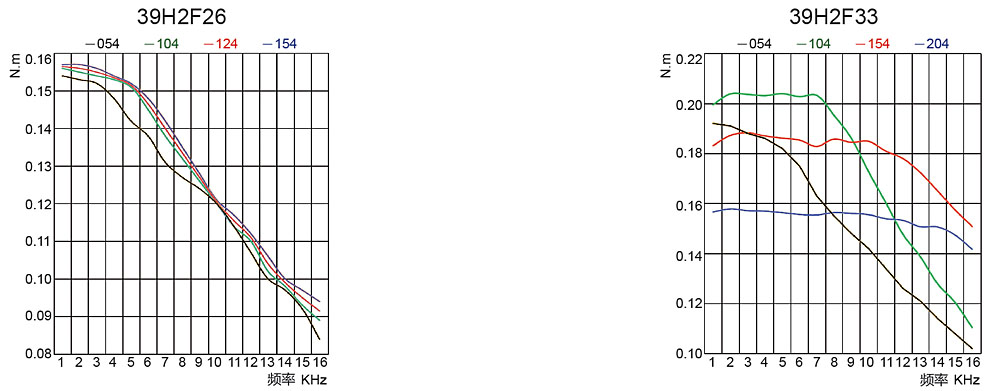

运行矩频特性(Torque-frequency Characteristic):

注意:装配时,须保证电机轴和负载轴的同心,严禁敲打,以免损坏电机。
Note: when installing the motor, must ensure that the motor shaft and load shaft concentric,never hit it, so as not to damage the motor.
